Web3 数据索引新利器：用 The Graph 打造 NFT 市场子图全攻略

· 7min · Paxon Qiao
Table of Contents

Web3 数据索引新利器：用 The Graph 打造 NFT 市场子图全攻略

Web3 浪潮席卷而来，区块链数据的查询与索引成为去中心化应用（dApp）开发的核心挑战。The Graph 作为 Web3 数据索引的“新利器”，以其去中心化协议和高效查询能力，彻底简化了 NFT 市场等场景下的数据处理流程。无论是追踪交易事件还是分析市场动态，The Graph 都能让开发者事半功倍。本文将为您献上一份从零到部署的 NFT 市场子图全攻略，涵盖环境搭建、子图配置、映射编写及部署实战，助您快速掌握 The Graph，解锁 Web3 数据索引的无限可能！

本文深入剖析 The Graph 在 Web3 数据索引中的强大功能，以 NFT 市场为例，详细讲解如何利用 The Graph 构建高效子图。通过清晰的步骤指南，您将学会安装 Graph CLI、初始化子图、配置 NFT 市场合约事件、定义 schema、编写映射逻辑，并最终部署到 The Graph Studio。文章还提供部署失败的解决方案（如使用 Alchemy）和丰富的学习资源，适合 Web3 开发者快速上手。无论是初学者还是资深开发者，都能通过这篇全攻略掌握 The Graph 的核心技能，轻松应对区块链数据挑战。

The Graph是一个强大的去中心化协议，可以无缝地查询区块链数据并将其索引。 它简化了查询区块链数据的复杂过程，使开发dapp 更快和更容易。

thegraph

为NFTMarket创建一个The Graph子图

学习资料

步骤

  1. 安装Graph CLI 在本地环境中安装Graph CLI工具
  2. 初始化子图 使用Graph CLI初始化一个新的子图
  3. 配置子图（subgraph.yaml） 设置要索引的NFTMarket合约和List、Buy事件
  4. 定义Schema（schema.graphql） 定义List和Buy实体
  5. 编写映射（mapping.ts） 编写映射逻辑，以处理合约事件并更新子图的存储
  6. 部署子图 使用Graph CLI工具部署子图到The Graph Studio。

实操

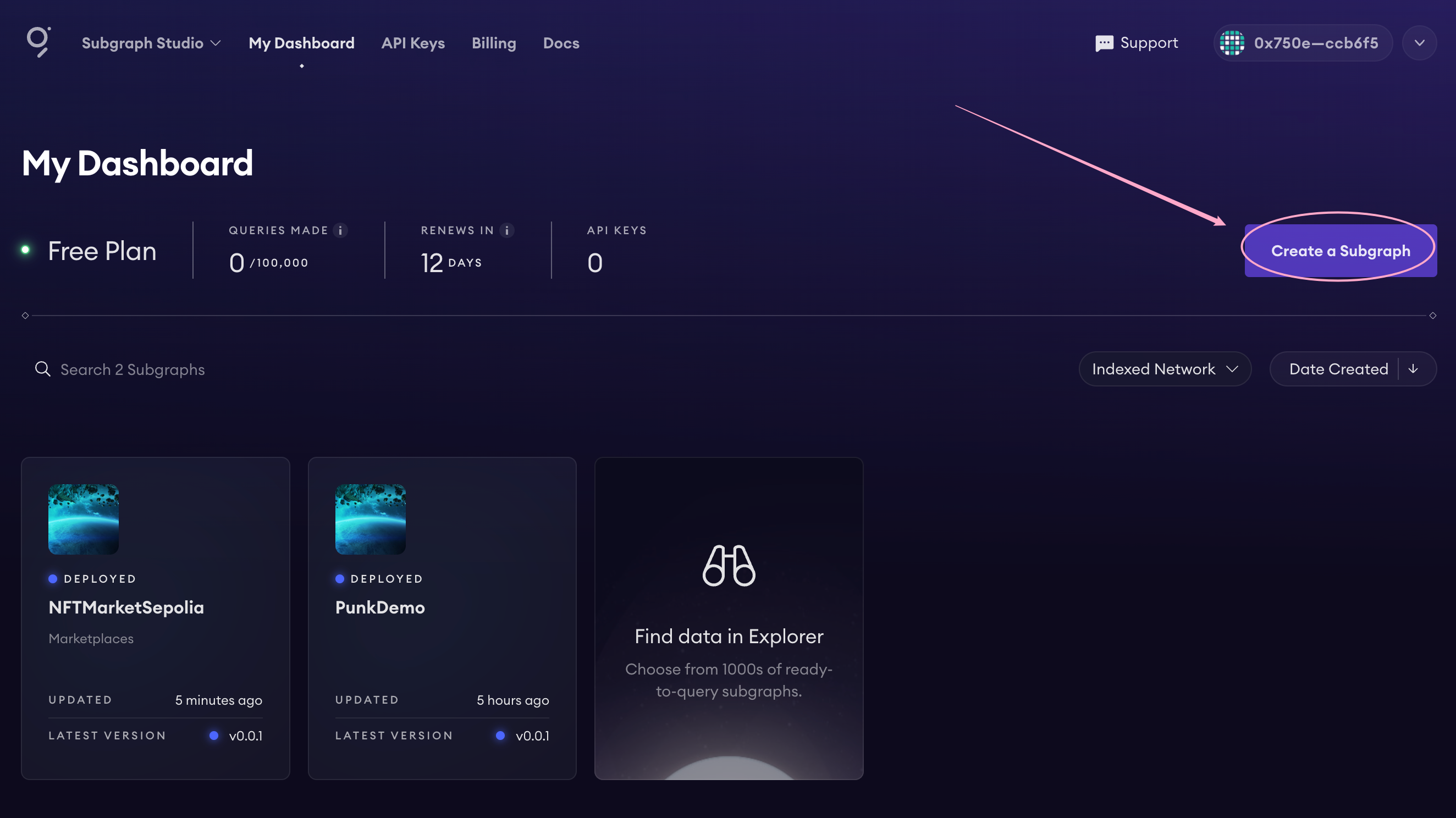

第一步：创建子图

image-20240719152946198

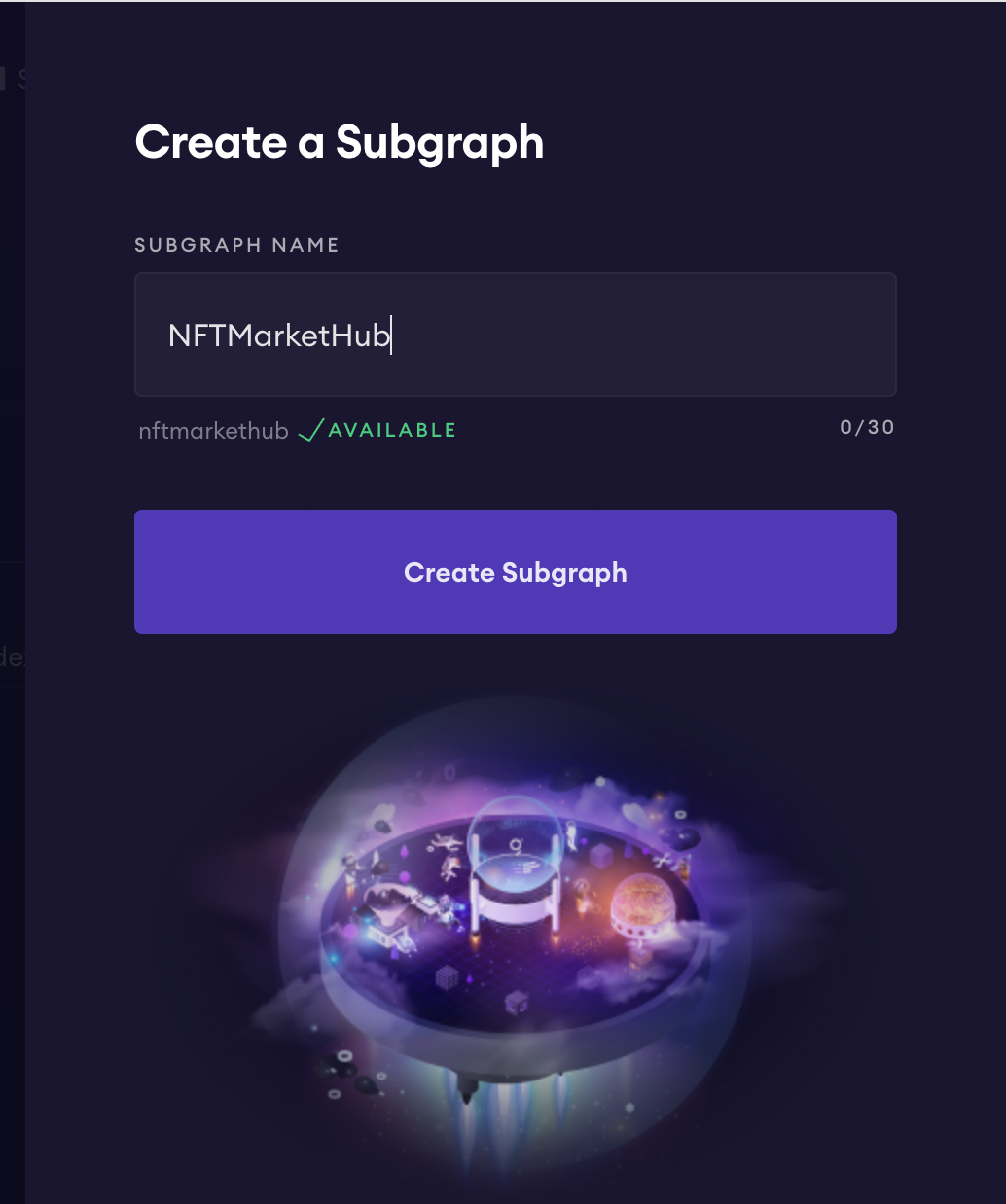

第二步：填写子图名称

image-20240719153052059

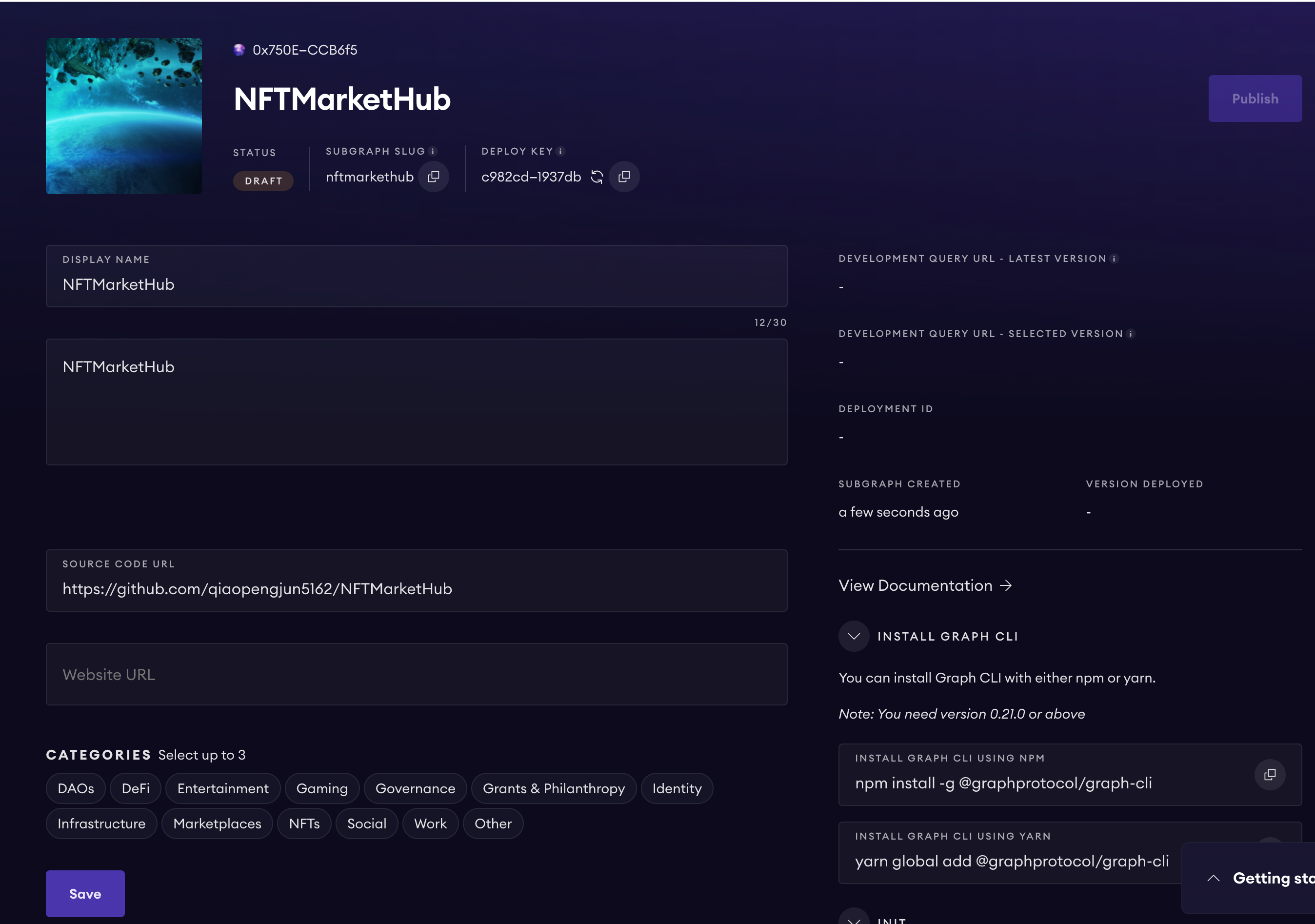

第三步：填写描述信息和源码链接（注意：描述信息必填否则不能保存）

image-20240719153315148

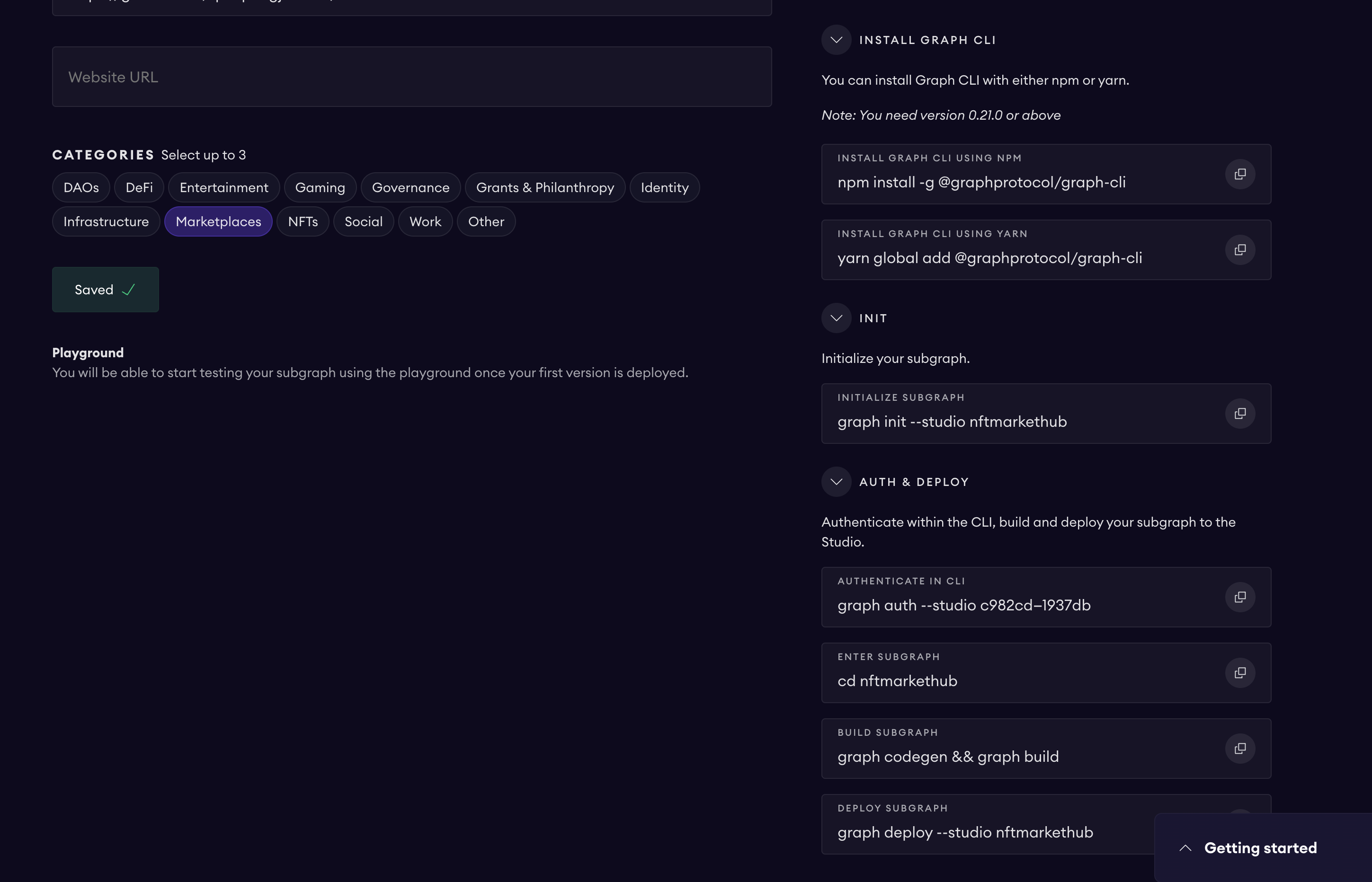

第四步：点击 Save 后即可根据右方的命令去执行对应的操作

image-20240719153716869

第五步：安装 GRAPH CLI

pnpm install -g @graphprotocol/graph-cli

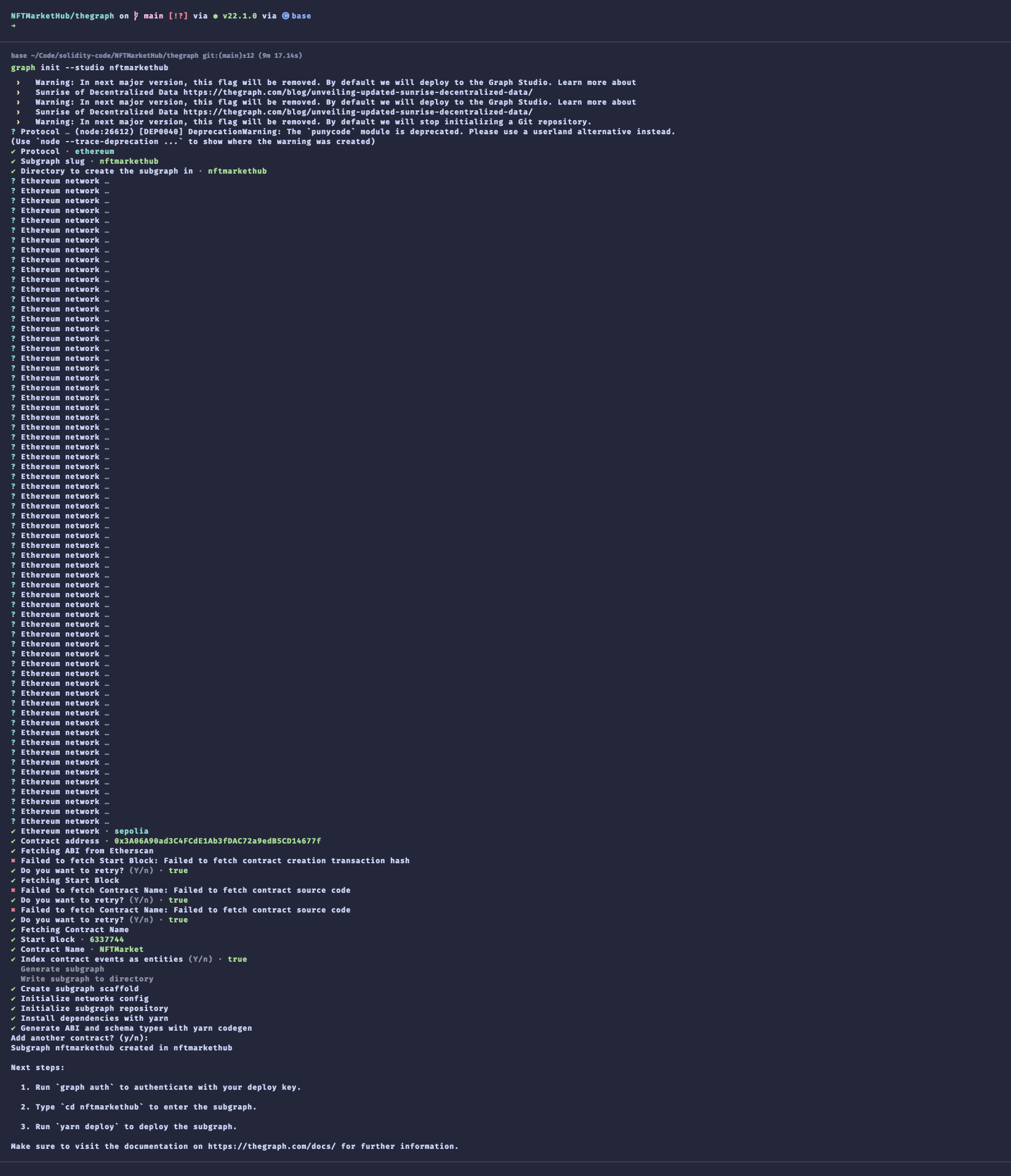

第六步：初始化子图

graph init --studio nftmarkethub

image-20240719155025236

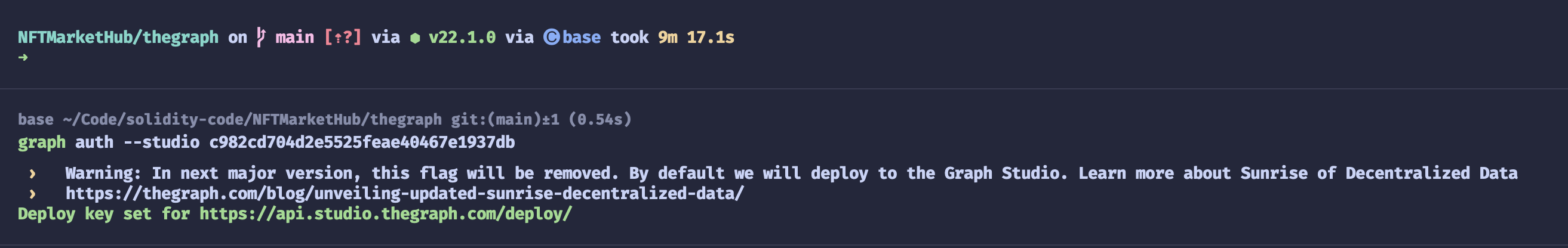

第七步：认证

graph auth --studio c982cd704d2e5525feae40467e1937db

image-20240719155212470

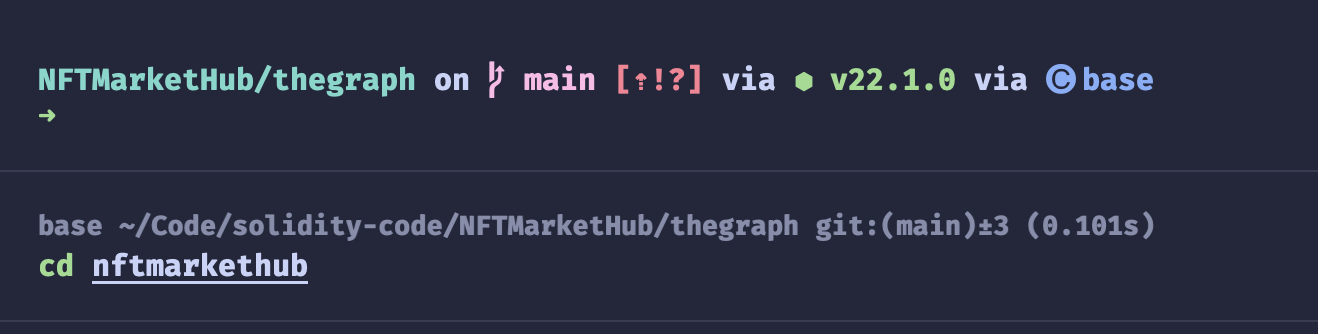

第八步：切换目录

cd nftmarkethub

image-20240719155321324

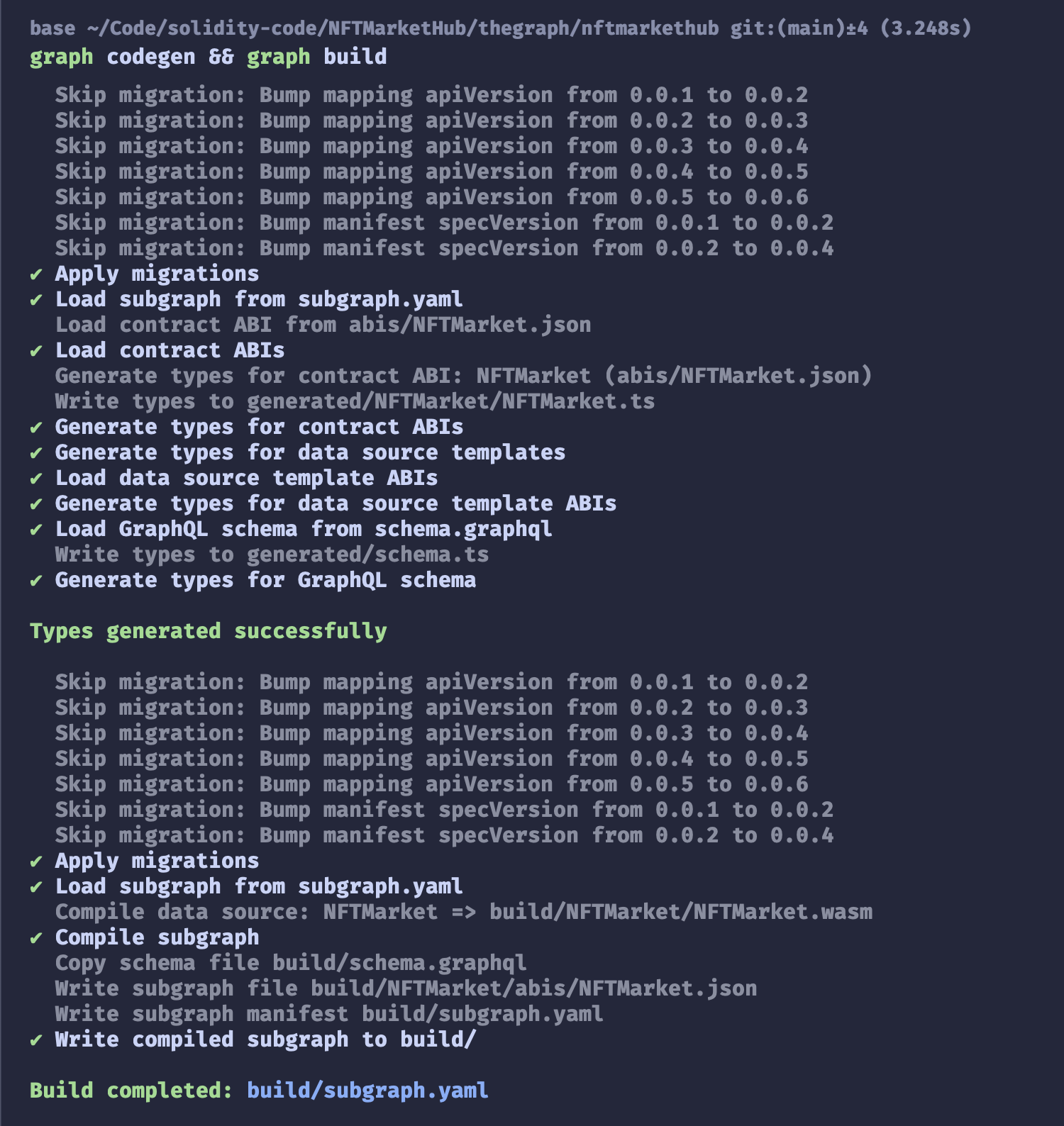

第九步：BUILD 子图

graph codegen && graph build

image-20240719155441488

第十步：部署子图

graph deploy --studio nftmarkethub

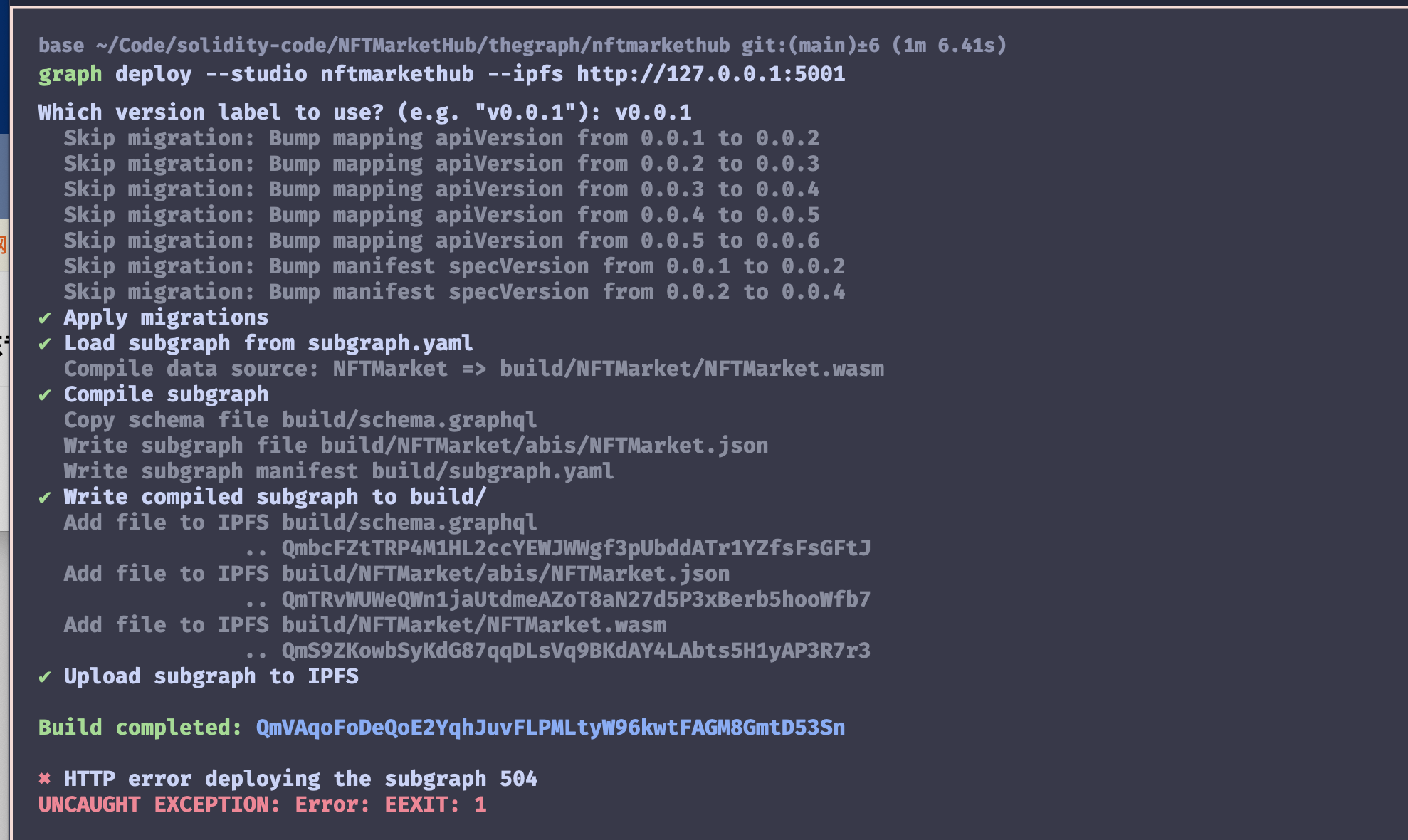

部署失败

image-20240719161346275

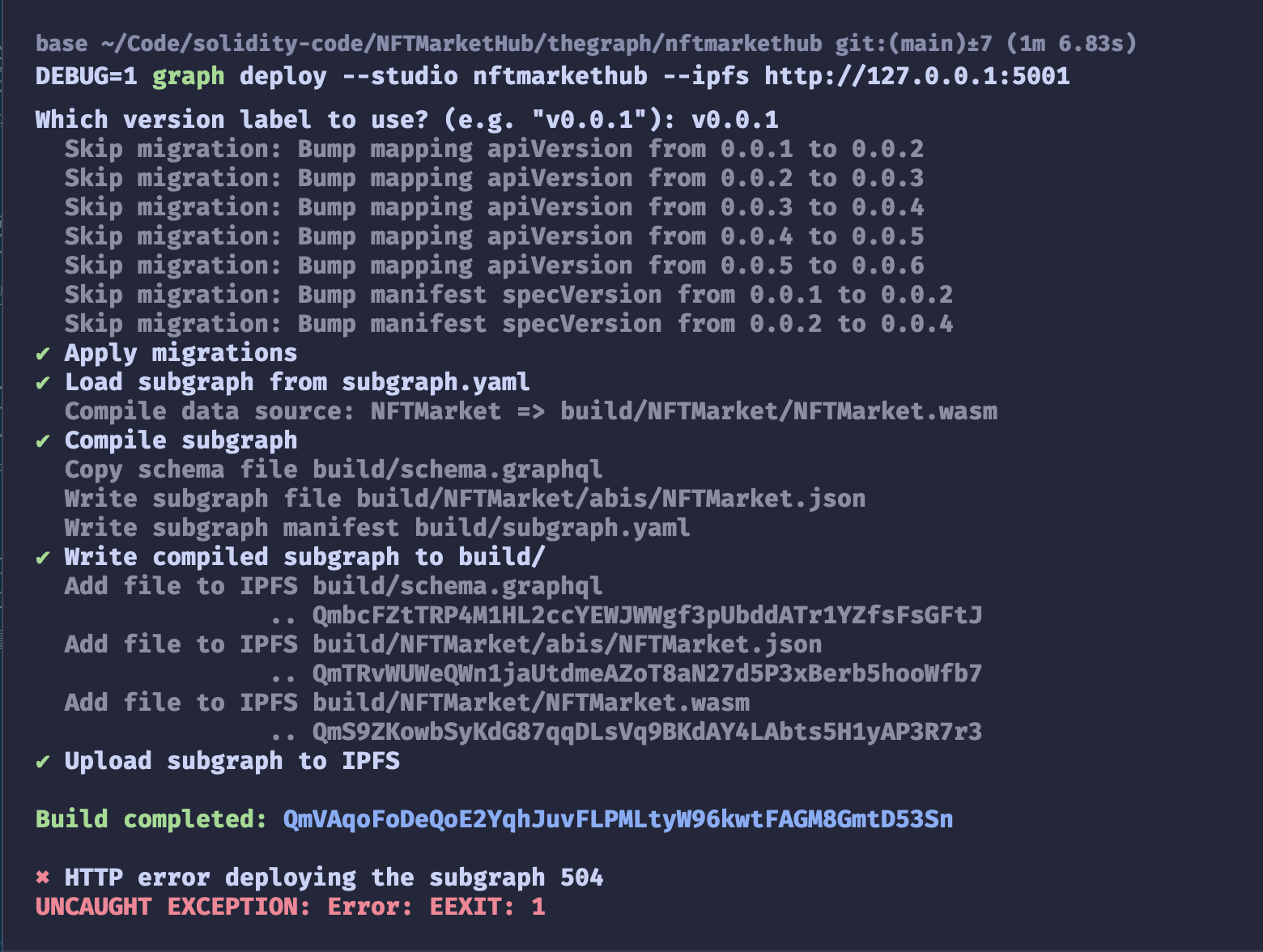

试图查询失败信息

image-20240720105810386

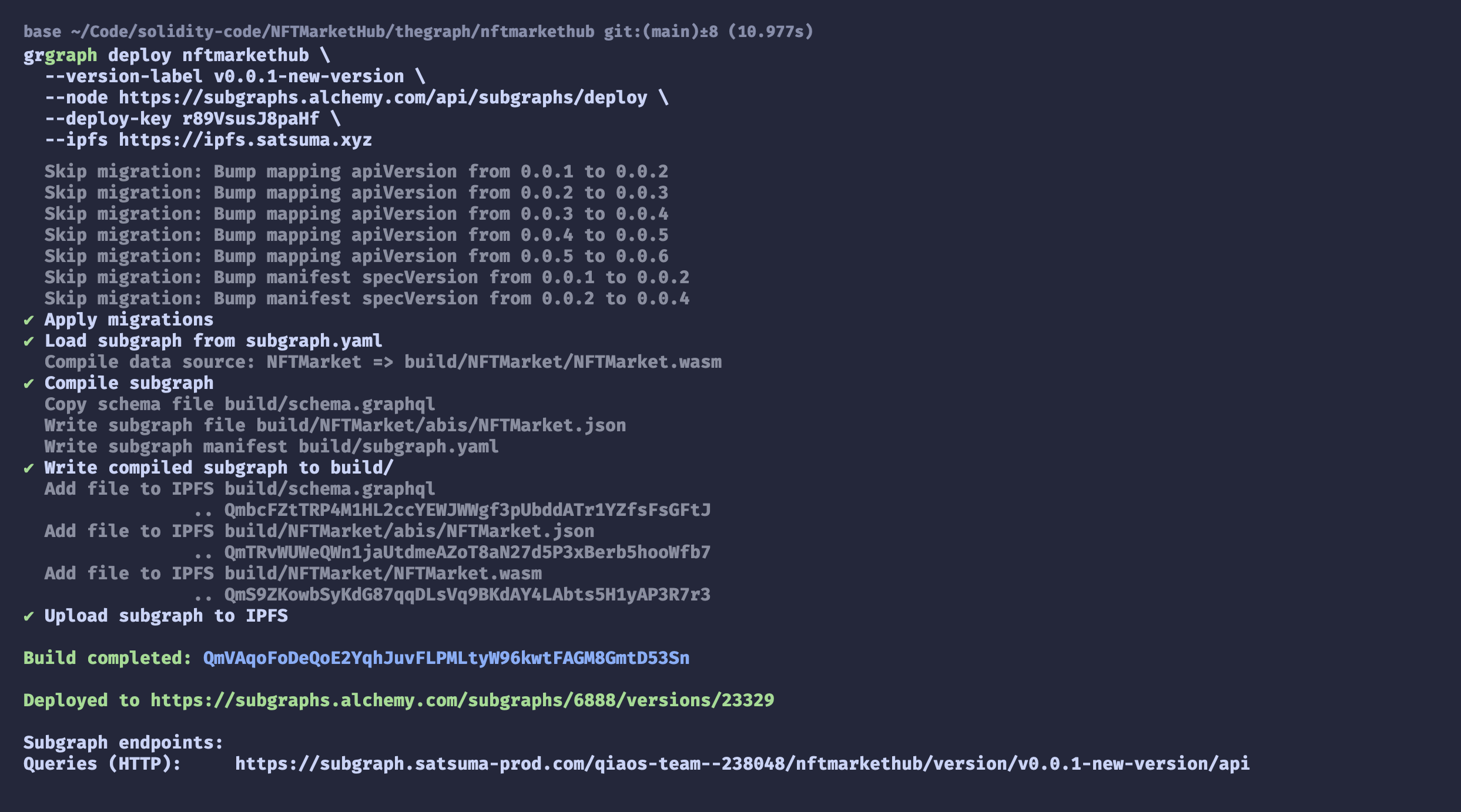

方法一：使用 alchemy 问题解决，部署成功

image-20240721113552746

方法二：重新初始化部署，部署成功

graph init --studio nftmarkethub
 ›   Warning: In next major version, this flag will be removed. By default we will deploy to the Graph Studio. Learn more about Sunrise of
 ›   Decentralized Data https://thegraph.com/blog/unveiling-updated-sunrise-decentralized-data/
 ›   Warning: In next major version, this flag will be removed. By default we will deploy to the Graph Studio. Learn more about Sunrise of
 ›   Decentralized Data https://thegraph.com/blog/unveiling-updated-sunrise-decentralized-data/
 ›   Warning: In next major version, this flag will be removed. By default we will stop initializing a Git repository.
? Protocol … (node:28795) [DEP0040] DeprecationWarning: The `punycode` module is deprecated. Please use a userland alternative instead.
(Use `node --trace-deprecation ...` to show where the warning was created)
✔ Protocol · ethereum
✔ Subgraph slug · nftmarkethub
✔ Directory to create the subgraph in · nftmarkethub
? Ethereum network …
? Ethereum network …
? Ethereum network …
✔ Ethereum network · sepolia
✔ Contract address · 0xbba4229cD53442D56E306379E99332687E1fb31f
✔ Fetching ABI from Etherscan
✖ Failed to fetch Start Block: Failed to fetch contract creation transaction hash
✔ Do you want to retry? (Y/n) · true
✔ Fetching Start Block
✖ Failed to fetch Contract Name: Failed to fetch contract source code
✔ Do you want to retry? (Y/n) · true
✖ Failed to fetch Contract Name: Failed to fetch contract source code
✔ Do you want to retry? (Y/n) · true
✖ Failed to fetch Contract Name: Failed to fetch contract source code
✔ Do you want to retry? (Y/n) · true
✔ Fetching Contract Name
✔ Start Block · 6356694
✔ Contract Name · NFTMarket
✔ Index contract events as entities (Y/n) · true
  Generate subgraph
  Write subgraph to directory
✔ Create subgraph scaffold
✔ Initialize networks config
✔ Initialize subgraph repository
✔ Install dependencies with yarn
✔ Generate ABI and schema types with yarn codegen
Add another contract? (y/n):
Subgraph nftmarkethub created in nftmarkethub

Next steps:

  1. Run `graph auth` to authenticate with your deploy key.

  2. Type `cd nftmarkethub` to enter the subgraph.

  3. Run `yarn deploy` to deploy the subgraph.

Make sure to visit the documentation on https://thegraph.com/docs/ for further information.

NFTMarketHub/thegraph/thegraph on  main [⇡?] via ⬢ v22.1.0 via 🅒 base took 2m 40.6s
➜
graph auth --studio c982cd704d2e5525feae40467e1937db
 ›   Warning: In next major version, this flag will be removed. By default we will deploy to the Graph Studio. Learn more about Sunrise of
 ›   Decentralized Data https://thegraph.com/blog/unveiling-updated-sunrise-decentralized-data/
Deploy key set for https://api.studio.thegraph.com/deploy/

NFTMarketHub/thegraph/thegraph on  main [⇡?] via ⬢ v22.1.0 via 🅒 base
➜
cd nftmarkethub

NFTMarketHub/thegraph/thegraph/nftmarkethub on  main [⇡?] via ⬢ v22.1.0 via 🅒 base
➜
graph codegen && graph build
  Skip migration: Bump mapping apiVersion from 0.0.1 to 0.0.2
  Skip migration: Bump mapping apiVersion from 0.0.2 to 0.0.3
  Skip migration: Bump mapping apiVersion from 0.0.3 to 0.0.4
  Skip migration: Bump mapping apiVersion from 0.0.4 to 0.0.5
  Skip migration: Bump mapping apiVersion from 0.0.5 to 0.0.6
  Skip migration: Bump manifest specVersion from 0.0.1 to 0.0.2
  Skip migration: Bump manifest specVersion from 0.0.2 to 0.0.4
✔ Apply migrations
✔ Load subgraph from subgraph.yaml
  Load contract ABI from abis/NFTMarket.json
✔ Load contract ABIs
  Generate types for contract ABI: NFTMarket (abis/NFTMarket.json)
  Write types to generated/NFTMarket/NFTMarket.ts
✔ Generate types for contract ABIs
✔ Generate types for data source templates
✔ Load data source template ABIs
✔ Generate types for data source template ABIs
✔ Load GraphQL schema from schema.graphql
  Write types to generated/schema.ts
✔ Generate types for GraphQL schema

Types generated successfully

  Skip migration: Bump mapping apiVersion from 0.0.1 to 0.0.2
  Skip migration: Bump mapping apiVersion from 0.0.2 to 0.0.3
  Skip migration: Bump mapping apiVersion from 0.0.3 to 0.0.4
  Skip migration: Bump mapping apiVersion from 0.0.4 to 0.0.5
  Skip migration: Bump mapping apiVersion from 0.0.5 to 0.0.6
  Skip migration: Bump manifest specVersion from 0.0.1 to 0.0.2
  Skip migration: Bump manifest specVersion from 0.0.2 to 0.0.4
✔ Apply migrations
✔ Load subgraph from subgraph.yaml
  Compile data source: NFTMarket => build/NFTMarket/NFTMarket.wasm
✔ Compile subgraph
  Copy schema file build/schema.graphql
  Write subgraph file build/NFTMarket/abis/NFTMarket.json
  Write subgraph manifest build/subgraph.yaml
✔ Write compiled subgraph to build/

Build completed: build/subgraph.yaml


NFTMarketHub/thegraph/thegraph/nftmarkethub on  main [⇡?] via ⬢ v22.1.0 via 🅒 base took 3.0s
➜
graph deploy --studio nftmarkethub
Which version label to use? (e.g. "v0.0.1"): v0.0.1
  Skip migration: Bump mapping apiVersion from 0.0.1 to 0.0.2
  Skip migration: Bump mapping apiVersion from 0.0.2 to 0.0.3
  Skip migration: Bump mapping apiVersion from 0.0.3 to 0.0.4
  Skip migration: Bump mapping apiVersion from 0.0.4 to 0.0.5
  Skip migration: Bump mapping apiVersion from 0.0.5 to 0.0.6
  Skip migration: Bump manifest specVersion from 0.0.1 to 0.0.2
  Skip migration: Bump manifest specVersion from 0.0.2 to 0.0.4
✔ Apply migrations
✔ Load subgraph from subgraph.yaml
  Compile data source: NFTMarket => build/NFTMarket/NFTMarket.wasm
✔ Compile subgraph
  Copy schema file build/schema.graphql
  Write subgraph file build/NFTMarket/abis/NFTMarket.json
  Write subgraph manifest build/subgraph.yaml
✔ Write compiled subgraph to build/
  Add file to IPFS build/schema.graphql
                .. QmbcFZtTRP4M1HL2ccYEWJWWgf3pUbddATr1YZfsFsGFtJ
  Add file to IPFS build/NFTMarket/abis/NFTMarket.json
                .. QmNdh74x1i5W8vxJ9mB3574ei7m32HMbpiAgfiNkdKfYnC
  Add file to IPFS build/NFTMarket/NFTMarket.wasm
                .. QmS9ZKowbSyKdG87qqDLsVq9BKdAY4LAbts5H1yAP3R7r3
✔ Upload subgraph to IPFS

Build completed: QmebNDDAaXBAfo2abeEajWimikjQL63BnXAmh2JyPn6XTr

Deployed to https://thegraph.com/studio/subgraph/nftmarkethub

Subgraph endpoints:
Queries (HTTP):     https://api.studio.thegraph.com/query/83263/nftmarkethub/v0.0.1

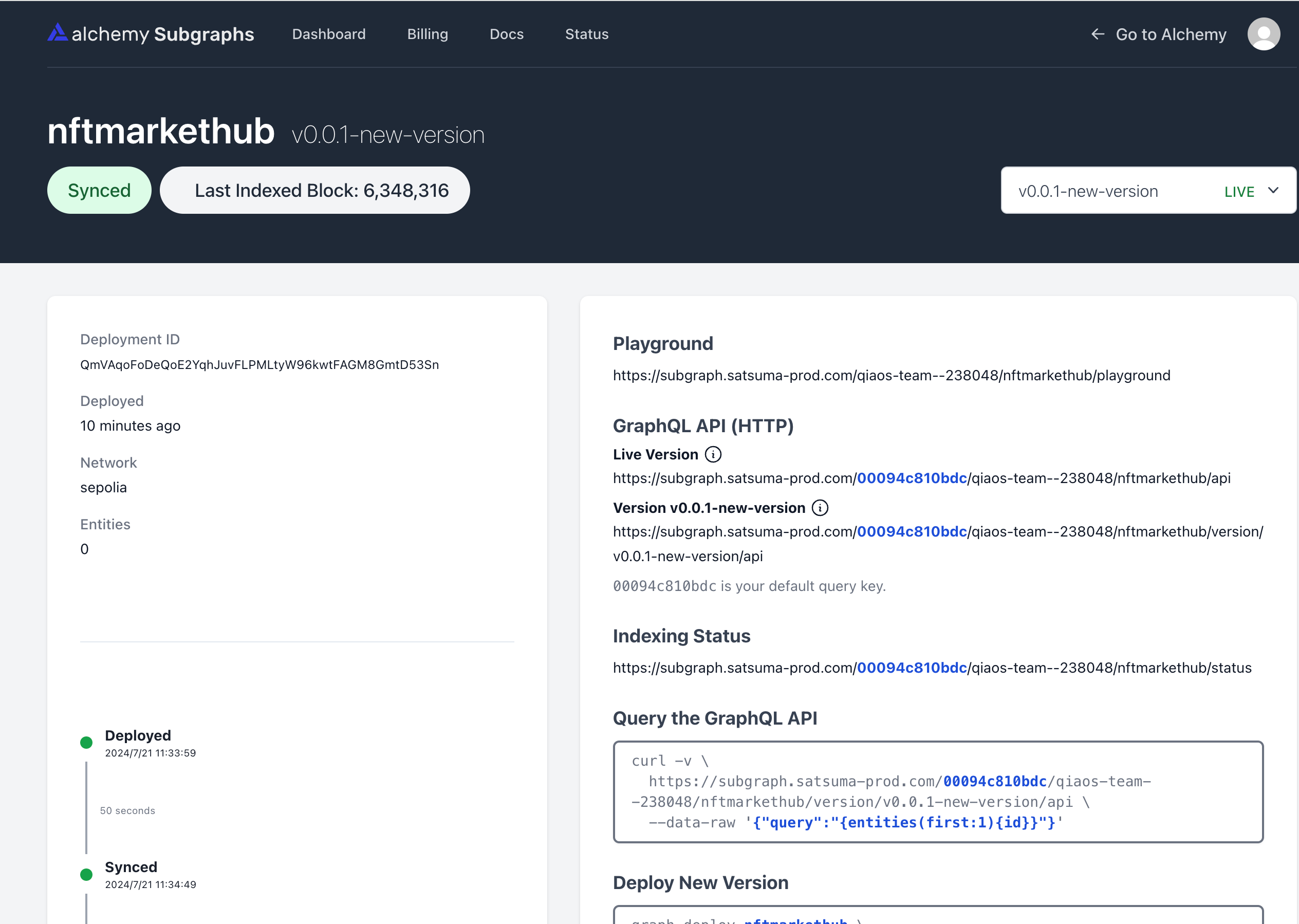

查看 subgraph

https://subgraphs.alchemy.com/onboarding

https://subgraphs.alchemy.com/subgraphs/6888

image-20240721114437302

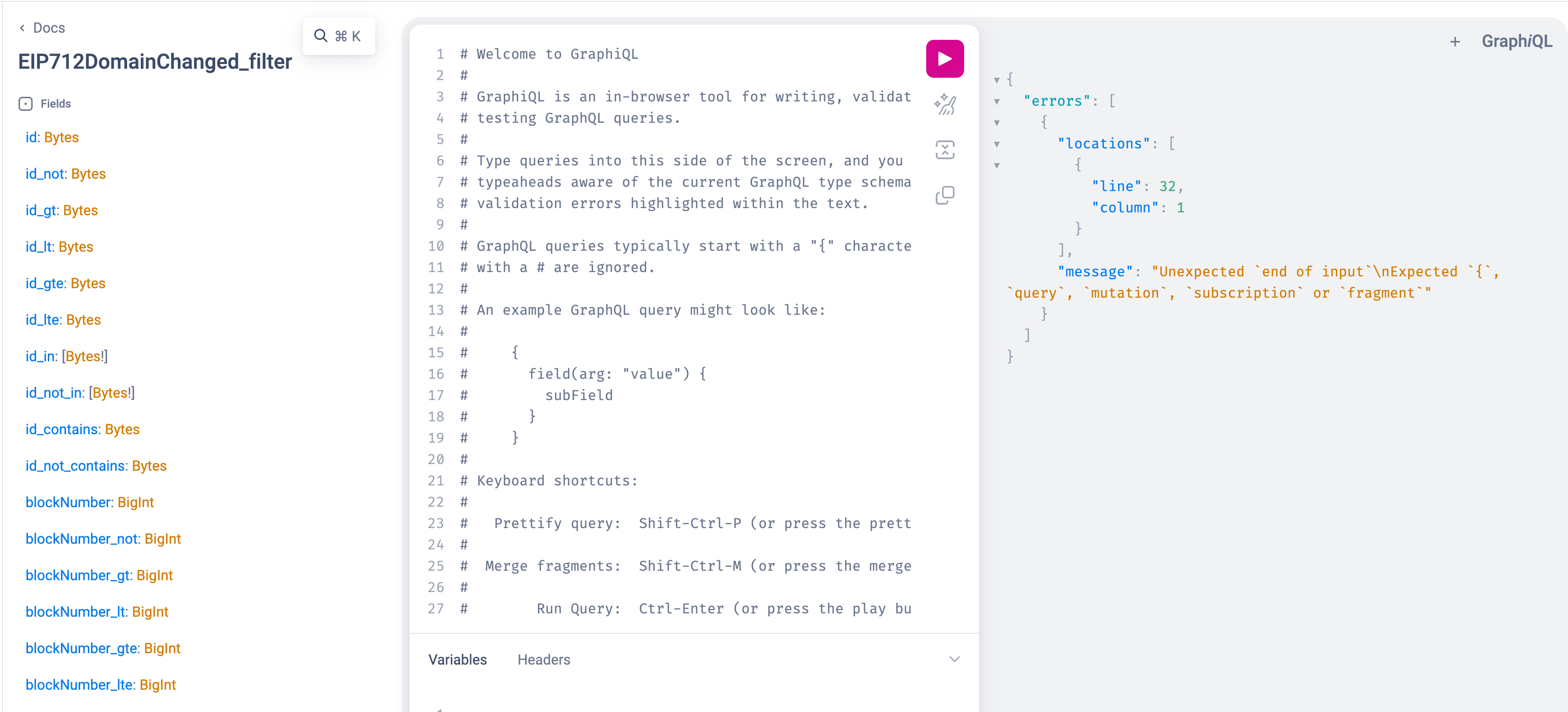

查询信息

https://subgraph.satsuma-prod.com/qiaos-team--238048/nftmarkethub/playground

image-20240721114500619

总结

The Graph 作为 Web3 数据索引的利器，为 NFT 市场等 dApp 开发提供了高效、去中心化的数据查询方案。本文通过详细的实战教程，带您从安装 Graph CLI 到成功部署 NFT 市场子图，完整掌握子图开发的每一步。无论是配置合约事件、编写映射逻辑，还是解决部署中的常见问题，这篇全攻略都为您提供了清晰指引和实用资源。借助 The Graph 的强大功能，开发者可以轻松构建高效的数据索引，加速 Web3 应用的创新与落地。立即行动，用 The Graph 开启您的 Web3 数据之旅！
